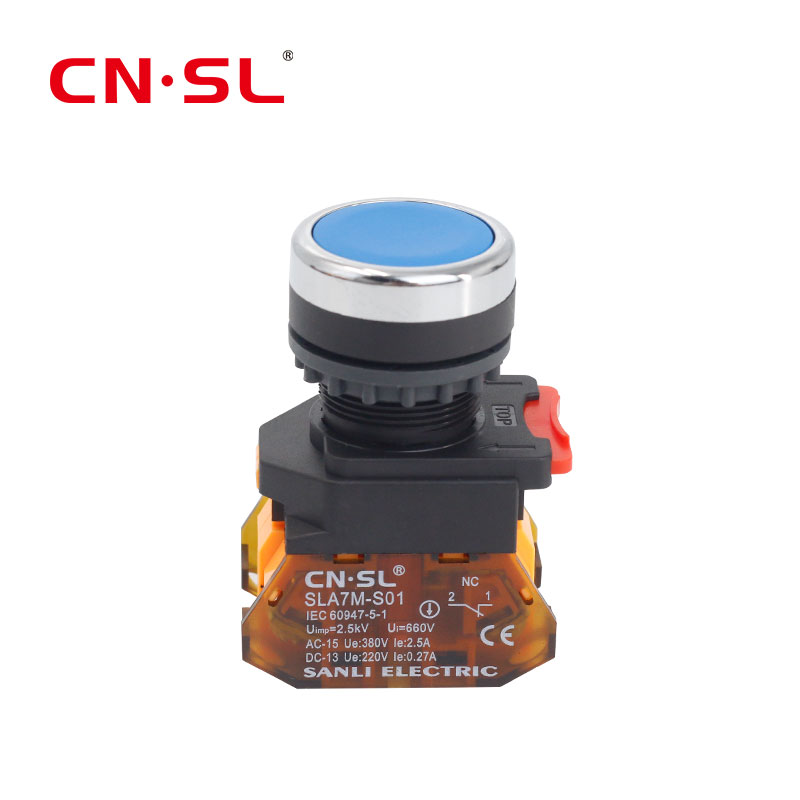

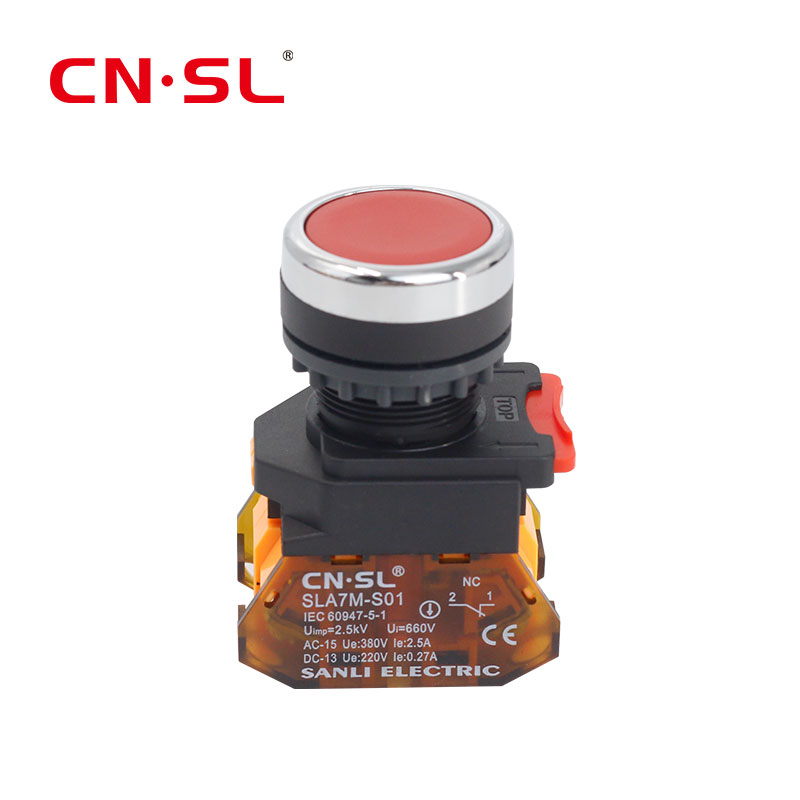

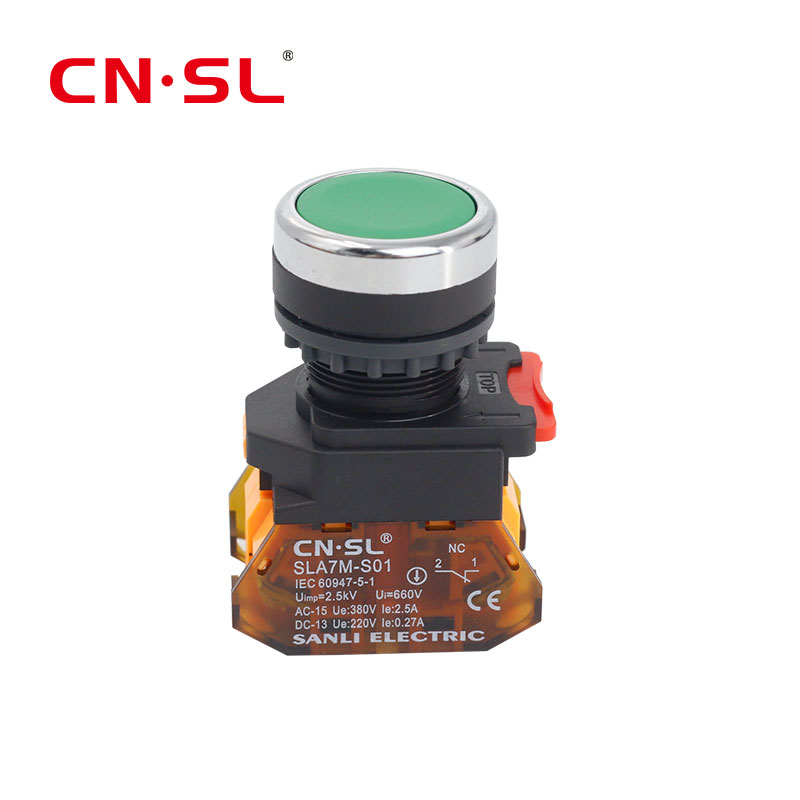

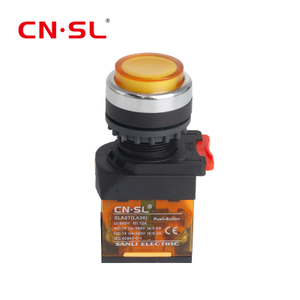

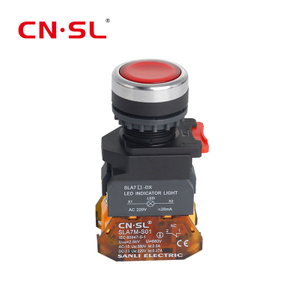

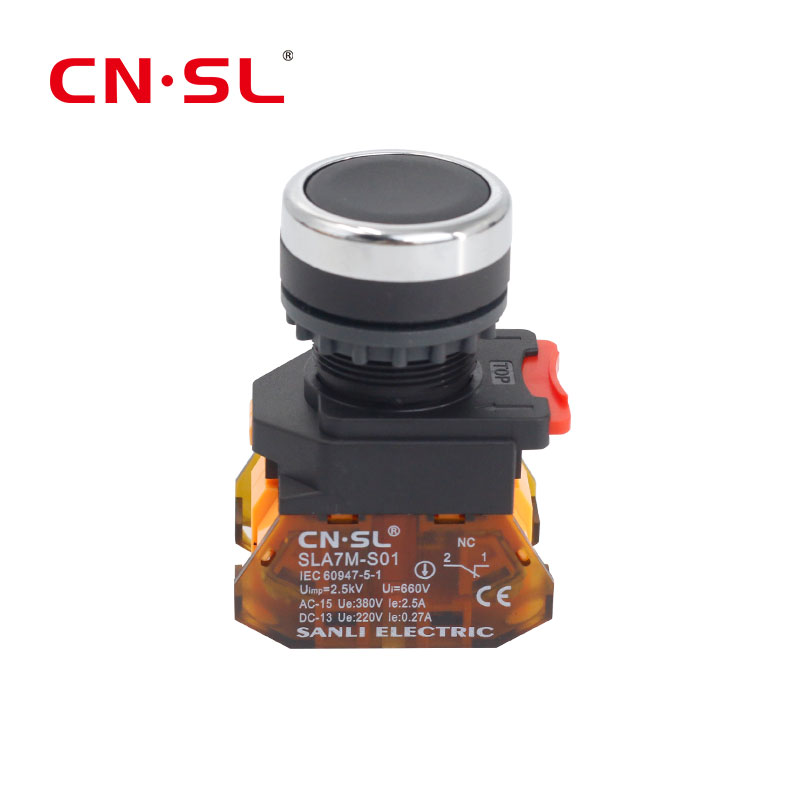

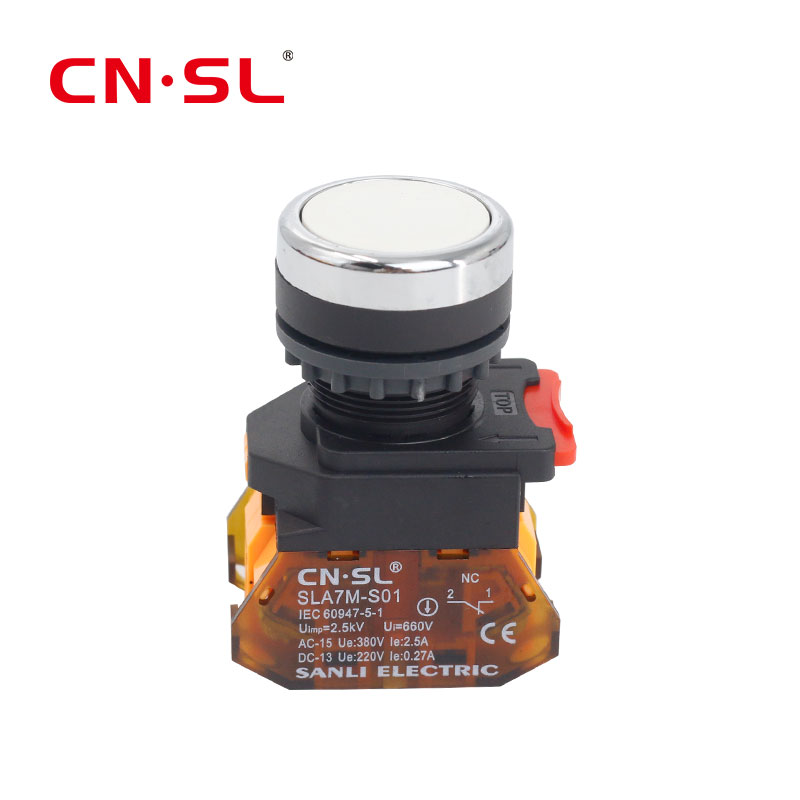

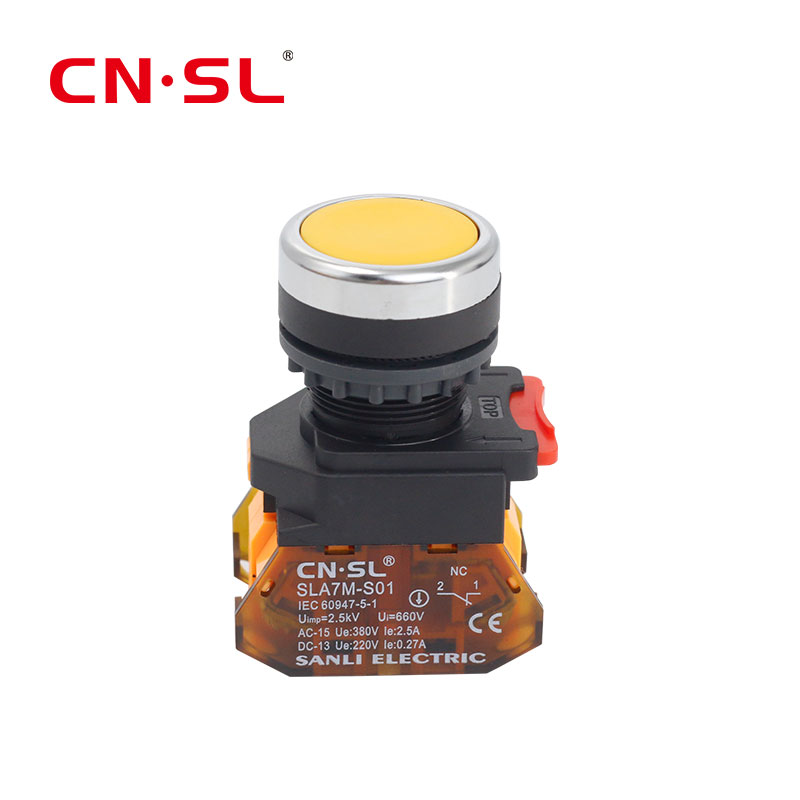

The SLA7M Plastic Push Button Switch 10A is a high-performance switch designed for industrial control applications. It supports a maximum current of 10A and a voltage of 380V, making it suitable for various heavy-duty applications.
This switch features an LED indicator for easy monitoring. It has an IP65 rating, ensuring protection against dust and water. The switch combination includes 1NO1NC, offering versatile connectivity options.
The switch construction includes a modular design with up to 8 switch units, providing flexibility and safety in installation. It offers a standard IP40 protection rating, with some models achieving up to IP67 for enhanced protection.
| Parameter | Value |
| Maximum Current | 10A |
| Maximum Voltage | 380V |
| LED Indicator | Yes |
| Intelligent Features | No |
| IP Rating | IP65 |
| Switch Combination | 1NO1NC |
| Series | LA38 |
| Suitable for | Industrial Control Circuits |
| Protection Level | IP40 (Standard), IP67 (Optional) |
| Rated Insulation Voltage | AC660V (50/60Hz) |
| Rated Thermal Current | Ith: 10A |
| Contact Resistance | ≤50mΩ (Silver Contacts) |
| Operating Temperature | -25°C to +55°C |
| Mechanical Life | 3 million cycles (Normal/Mushroom Buttons), 300,000 cycles (LED Buttons), 50,000 cycles (Selector/Push-Push Buttons) |
| Mounting Hole Diameter | 22mm |
Features for the SLA7M Plastic Push Button Switch 10A from CN·SL:
Durable and Waterproof Design: The switch has an IP65 rating, making it suitable for harsh environments and heavy industrial applications.
Ease of Use: Featuring a 2-position self-locking switch, it provides a simple and intuitive user interface for quick and easy selection between two positions.
High Current Capacity: With a maximum current of 10A, the switch meets the demands of high-power applications.
Safety Features: The switch includes an LED indicator for visual feedback, ensuring safe operation by confirming the switch status.
User Convenience: Customers can easily integrate the switch into existing systems. It is compatible with various applications, including electrical equipment and supplies.
Advantages and applications for the SLA7M Plastic Push Button Switch 10A from CN·SL:
Advantages:
Durable Design: The switch is built to last with IP65 protection, ensuring long-term performance in tough environments.
High Current Rating: With a maximum current of 10A, it is suitable for demanding electrical systems and industrial applications.
User-Friendly Operation: The 2-position self-locking switch allows for easy and quick operation in two distinct positions.
Safety: The LED indicator provides clear visual feedback, enhancing safety by ensuring proper operation.
Easy Integration: The switch is compatible with a wide range of applications, making it simple to integrate into existing systems.
Applications:
Industrial Control Circuits: Perfect for use in control circuits for motors, machines, and relays.
Electrical Equipment: Widely used in electrical equipment that requires a reliable push button for control.
Heavy-Duty Machinery: Ideal for industrial machinery that demands durable and easy-to-operate switches.
Control Panels: Can be used in control panels for various electrical and mechanical systems.
Automation Systems: Suitable for integration into automation systems requiring easy and reliable switching operations.
FAQs for SLA7M Plastic Push Button Switch 10A from CN·SL:
1. What is the maximum current rating for the SLA7M Plastic Push Button Switch 10A?
The SLA7M Plastic Push Button Switch 10A supports a maximum current of 10A, ideal for heavy-duty industrial applications.
2. What is the voltage rating of the SLA7M Plastic Push Button Switch 10A?
The switch supports a voltage rating of 380V, making it suitable for a wide range of electrical systems.
3. Is the SLA7M Plastic Push Button Switch waterproof?
Yes, the switch has an IP65 rating, ensuring protection against water and dust, making it suitable for harsh environments.
4. Does the SLA7M Plastic Push Button Switch have an LED indicator?
Yes, it is equipped with an LED indicator that provides clear visual feedback, helping users monitor switch status easily.
5. How many positions does the SLA7M Plastic Push Button Switch have?
The switch features a 2-position self-locking mechanism, allowing quick and easy operation between two distinct positions.
