The 10A High Current Push Button Switch is built for heavy-duty electrical applications. It supports high current and voltage, ensuring reliable performance in demanding environments.
This switch offers excellent contact resistance, ensuring smooth and reliable operation with a resistance of ≤ 50mΩ. The insulation resistance is ≥ 100mΩ, providing superior protection and safety.
With a mechanical lifespan of over 1,000,000 cycles and an electrical lifespan of 500,000 cycles, this push button switch guarantees long-lasting use. It is designed to withstand rigorous use in industrial and commercial settings.
| Parameter | Value |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100mΩ |
| Ambient Temperature | -25°C ~ +55°C |
| Panel Thickness for Installation | ≤ 6mm |
| Nut Torque | 5 ~ 14 N·m |
| Mechanical Lifespan | ≥ 1,000,000 cycles |
| Electrical Lifespan | ≥ 500,000 cycles |
| Housing Material | Stainless Steel / Nickel-plated Brass / Oxidized Aluminum |
| Button Material | Stainless Steel |
| Light Cover Material | Eco-friendly PC |
| Base Material | High Flame-retardant PA66 |
| Pin Material | H65 Nickel-plated |
| Contact Material | Silver |
| Spring Material | Imported Steel Wire |
| Protection Rating | IP65 / IP67 |
| Impact Rating | IK10 |
| Rated Load | Ui AC250V, Ith 20A |

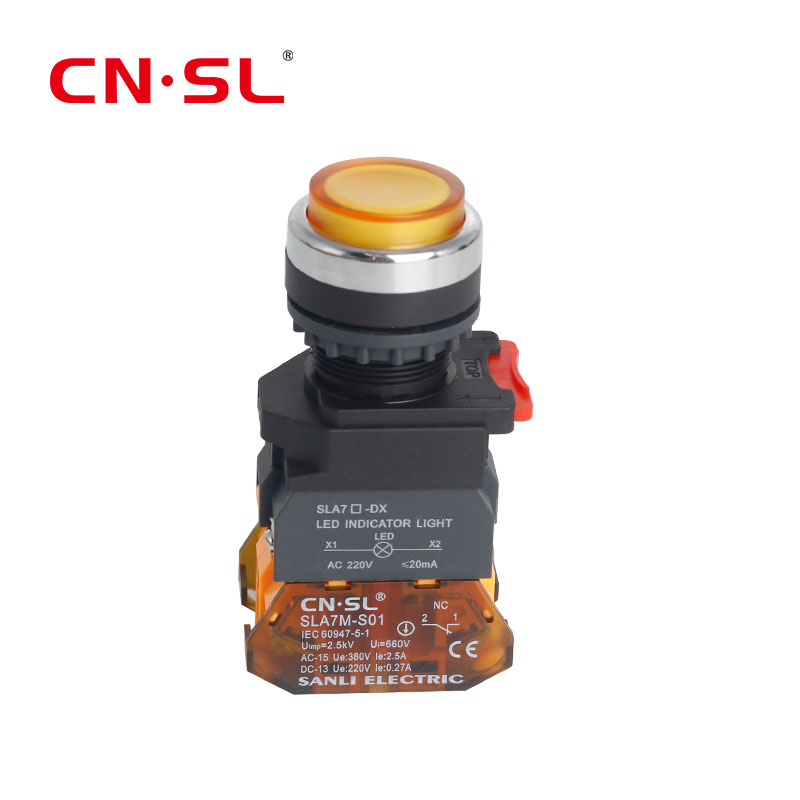

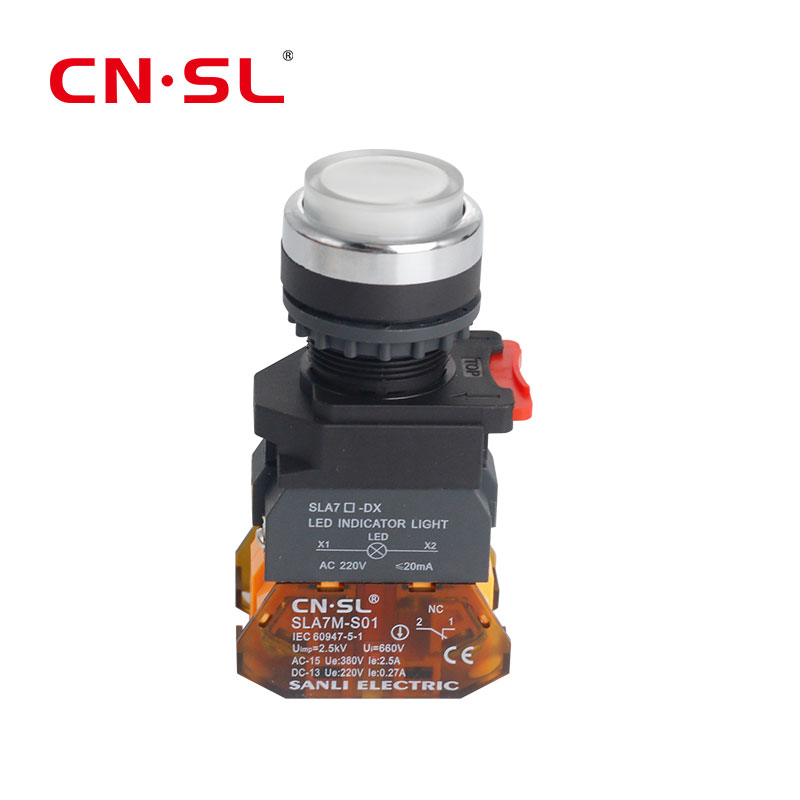

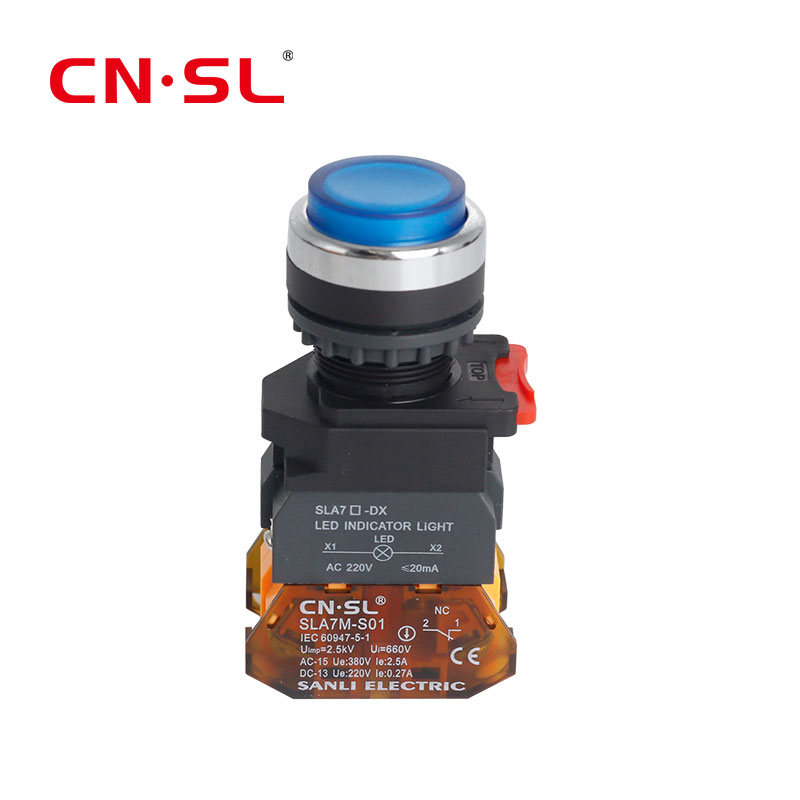

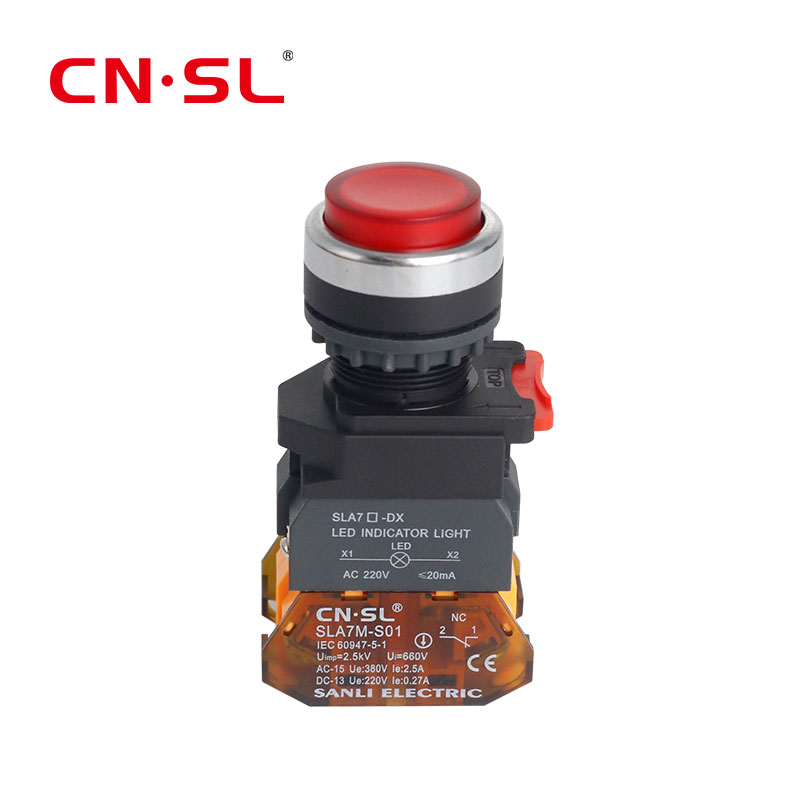

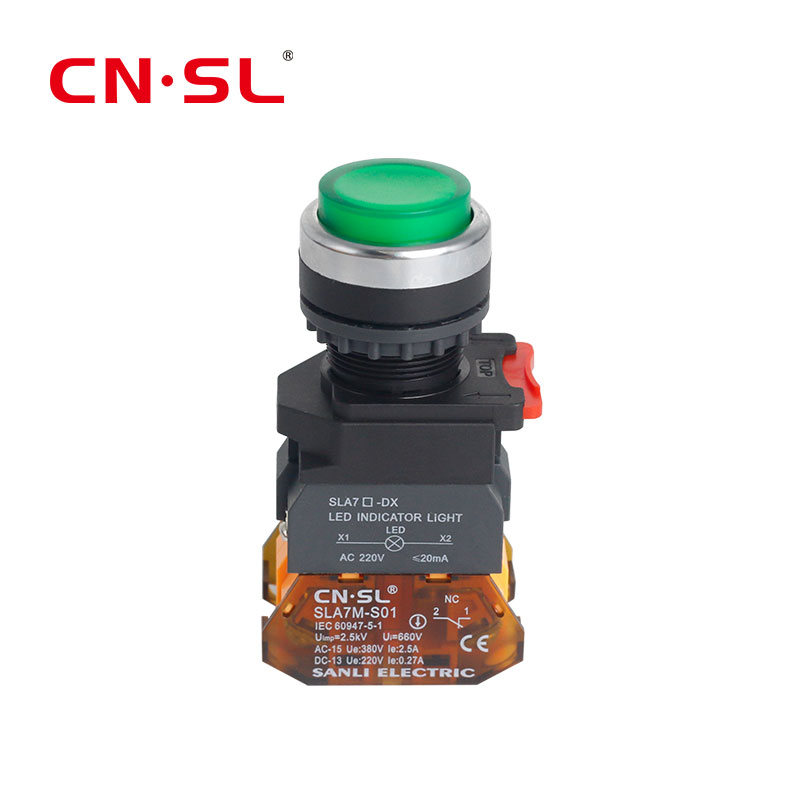

Features of SLA7M Plastic Push Button Switch 10A
Installation Diameter: Suitable for installation with diameters ranging from Φ12-25mm for versatile mounting.
Waterproof, Dustproof, and Corrosion-resistant: Built to withstand harsh environments with excellent protection.
High Mechanical Lifespan: Designed for long-term use with a high mechanical lifespan, ensuring reliability.
Built-in LED with Voltage Reduction Resistor: Features a chipless LED for reduced power consumption and reliable illumination.
LED Voltage Options: Available with 3-6V, 12-24V, 220V, or 3-50V voltage options to suit different needs.
Self-recovery/Self-locking Options: Offers self-recovery and self-locking functionality based on your needs.
High Rated Load Capacity: Supports a 20A rated load, ideal for industrial and commercial use.
Optional Adapter: Comes with a 150mm switch wire and 1.5mm² switch cable for easy setup and integration.
Advantages and Applications of SLA7M Plastic Push Button Switch 10A
Advantages:
Durability: Built with high-quality materials for long-lasting
performance, even in harsh conditions.
Versatile Voltage Options: Supports various voltage configurations (3-6V, 12-24V, 220V, 3-50V) for flexible usage.
High Load Capacity: Can handle up to 20A, making it suitable for industrial and commercial environments.
Enhanced Protection: Offers IP65/IP67 waterproof and dustproof ratings, ensuring reliable operation in challenging environments.
User-Friendly: Easy installation with adaptable Φ12-25mm mounting diameter and customizable switch wires.
Applications:
Industrial Control Systems: Ideal for use in machinery and electrical systems requiring frequent switching.
Automated Equipment: Perfect for controlling machines, robots, and other automated systems in factories.
Heavy Machinery: Used in construction, mining, and other industries where high-power switches are needed.
Electrical Panels: Commonly used in electrical panels for controlling and monitoring various circuits.
Commercial Use: Suitable for use in elevators, HVAC systems, and other high-demand applications.
FAQs for SLA7M Plastic Push Button Switch 10A
1. What is the maximum load capacity of the SLA7M Plastic Push Button Switch?
The SLA7M Plastic Push Button Switch supports a 20A rated load, making it ideal for industrial and commercial applications.
2. What voltage configurations are available for this switch?
This push button switch offers several voltage options: 3-6V, 12-24V, 220V, and 3-50V, ensuring compatibility with various electrical systems.
3. Is the SLA7M Plastic Push Button Switch waterproof?
Yes, the switch has an IP65/IP67 rating, offering protection against water, dust, and corrosion, suitable for demanding environments.
4. What is the mechanical lifespan of this switch?
The switch has a mechanical lifespan of over 1 million cycles, ensuring long-term reliability and durability.
5. Can I install the SLA7M Plastic Push Button Switch on panels with any thickness?
The switch is designed to be installed on panels with a thickness of up to 6mm, making it suitable for a variety of setups.
