Product Description

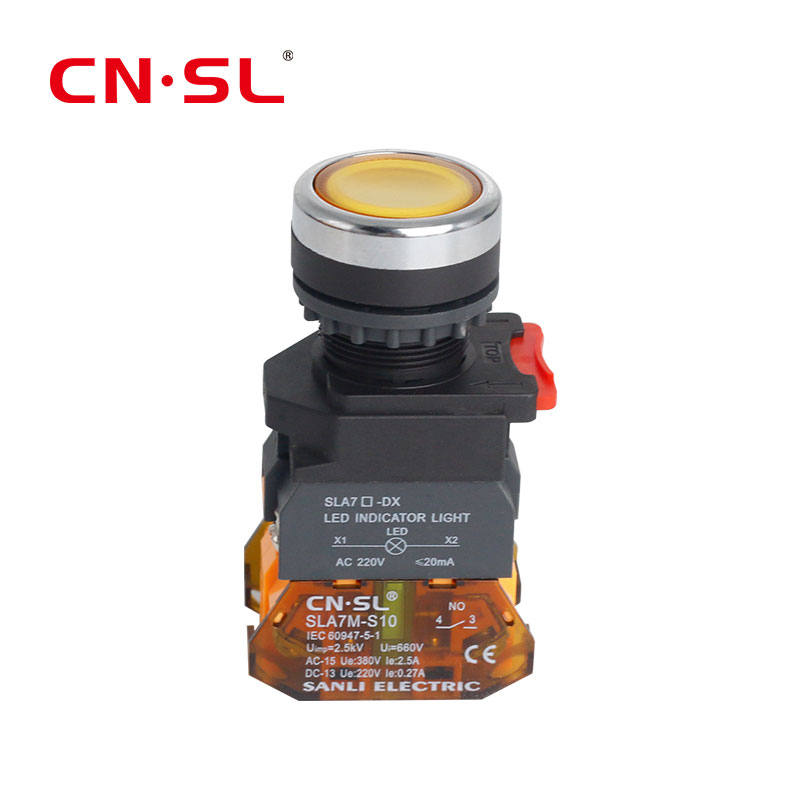

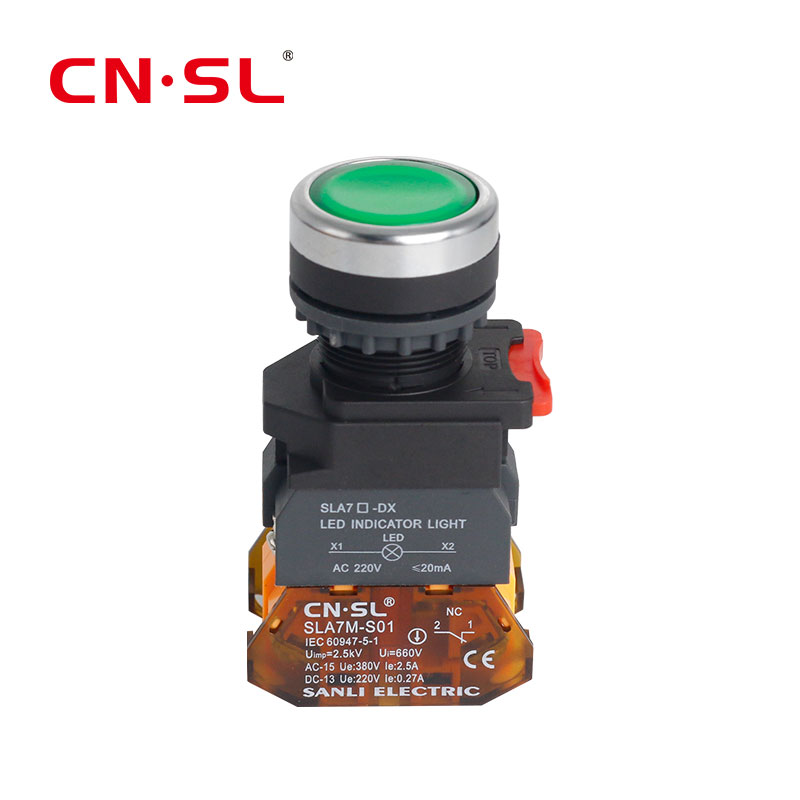

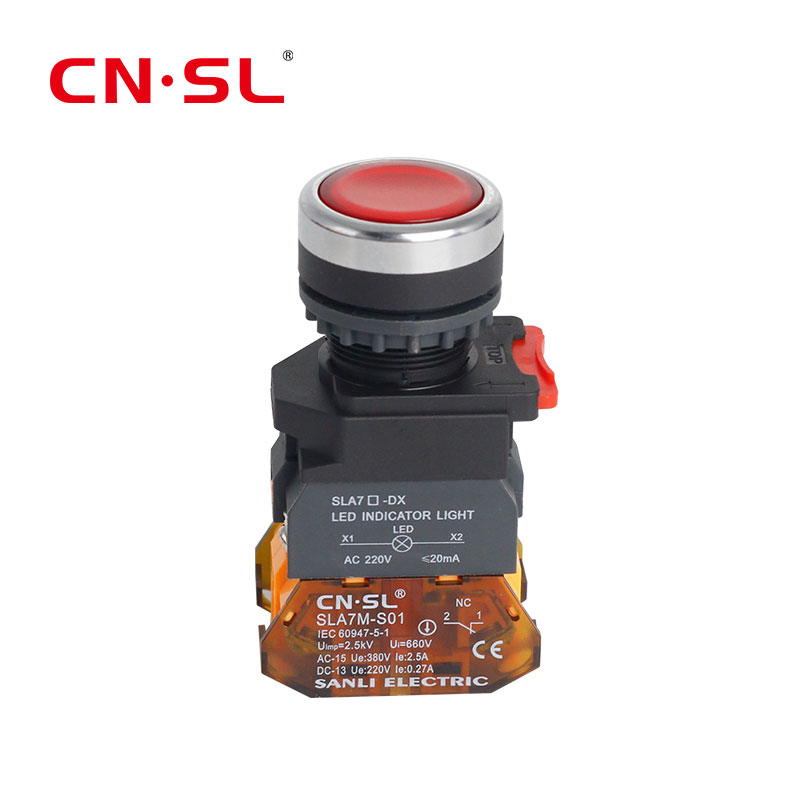

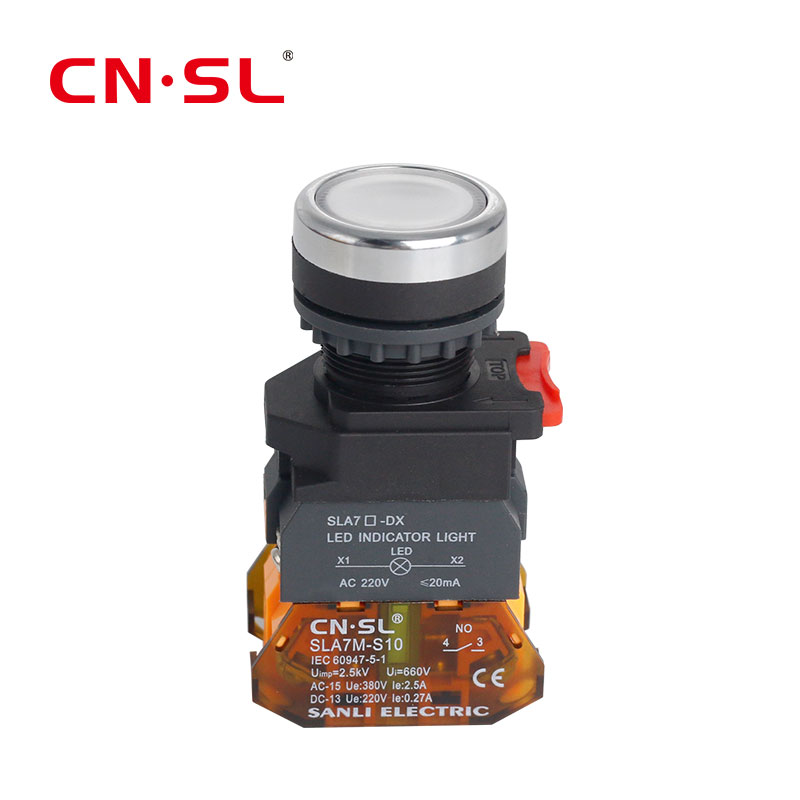

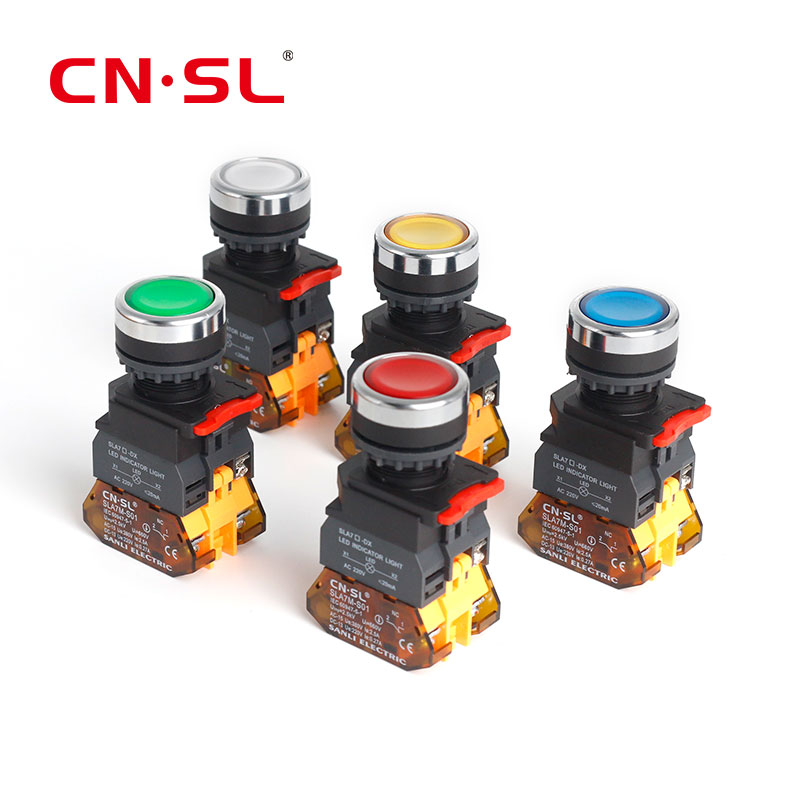

Industrial control systems require switches that respond instantly, endure repeated operation, and maintain stable performance in harsh environments. This 22mm LED push button switch is designed to provide precise momentary control while maintaining visual clarity through integrated LED indication.
The metal actuator and sealed front design protect internal components from moisture, dust, and mechanical stress. With IP67-rated front protection, it prevents water ingress during wash-down or humid conditions, reducing downtime caused by corrosion or internal short circuits.
The momentary mechanism ensures the circuit is activated only when pressed, making it suitable for start signals, trigger operations, reset functions, and safety confirmation inputs.
The integrated LED indicator enhances operational clarity. Operators can identify switch status instantly, minimizing operational errors and improving panel usability in low-light industrial environments.
Built for long mechanical life and stable electrical performance, this switch is engineered to reduce replacement frequency and maintain consistent signal integrity.
Product Features & Performance Highlights
1. Industrial-Grade Structural Design
Solid metal housing resists impact and vibration
Anti-oxidation surface treatment improves corrosion resistance
Reinforced actuator structure prevents deformation under frequent pressing
Panel mounting stability reduces micro-movement and wiring stress
This construction ensures long-term reliability in automation panels, heavy equipment, and outdoor systems.
2. IP67 Waterproof Front Protection
Sealed front bezel design
Resistant to water spray and dust ingress
Suitable for humid, dusty, or wash-down environments
Protection at the operator interface level significantly lowers failure rates compared to non-sealed push buttons.
3. Stable Momentary Signal Control
Self-reset mechanism ensures immediate return
Clean contact action minimizes electrical bounce
Suitable for control signals, relay triggering, and PLC input
Designed for precise command execution without signal instability.
4. Integrated LED Status Indication
The LED system enhances panel readability and operational safety.
