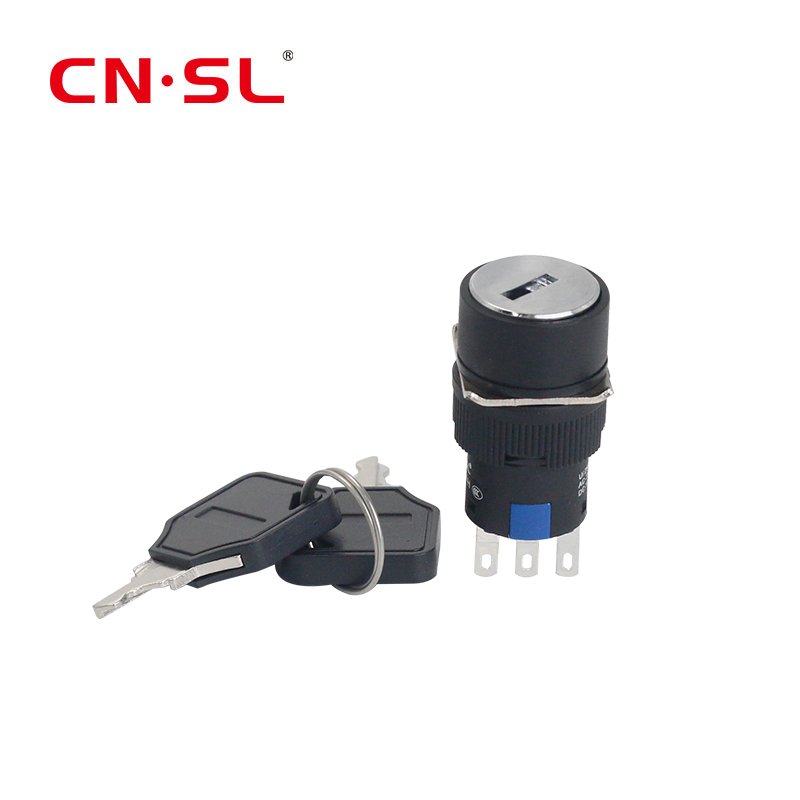

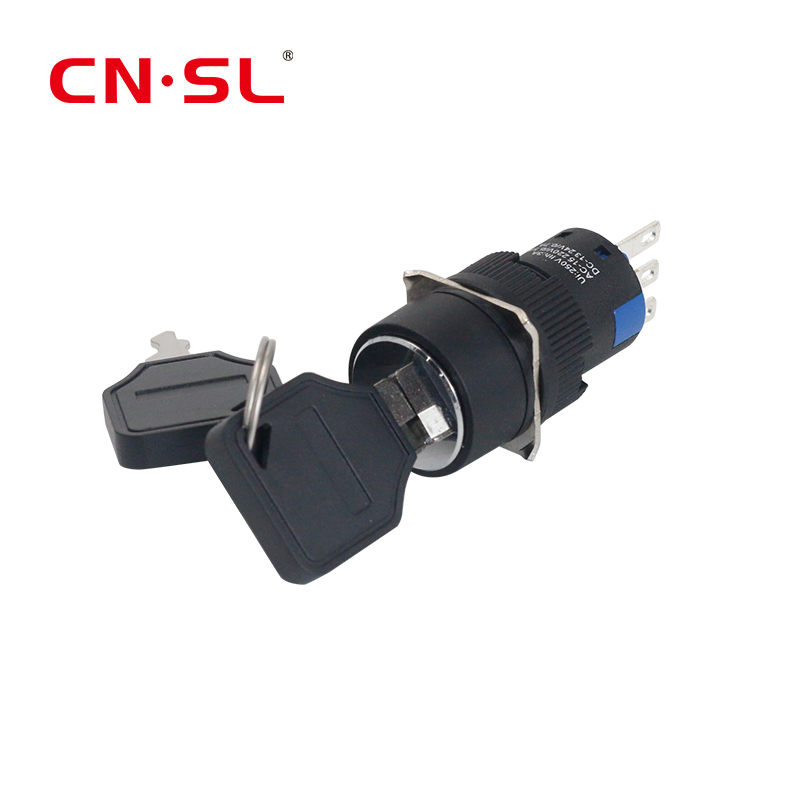

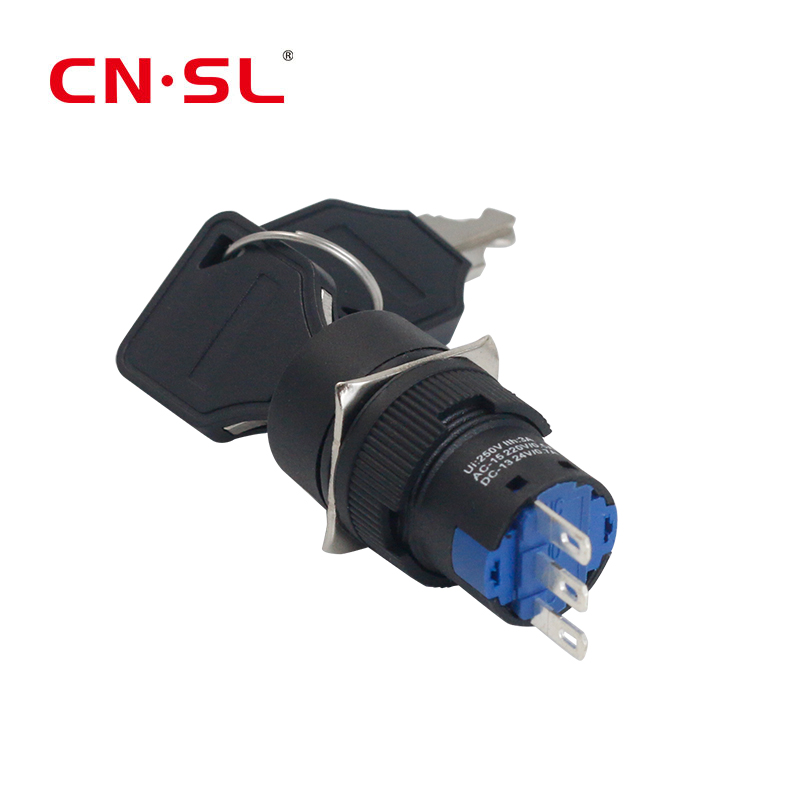

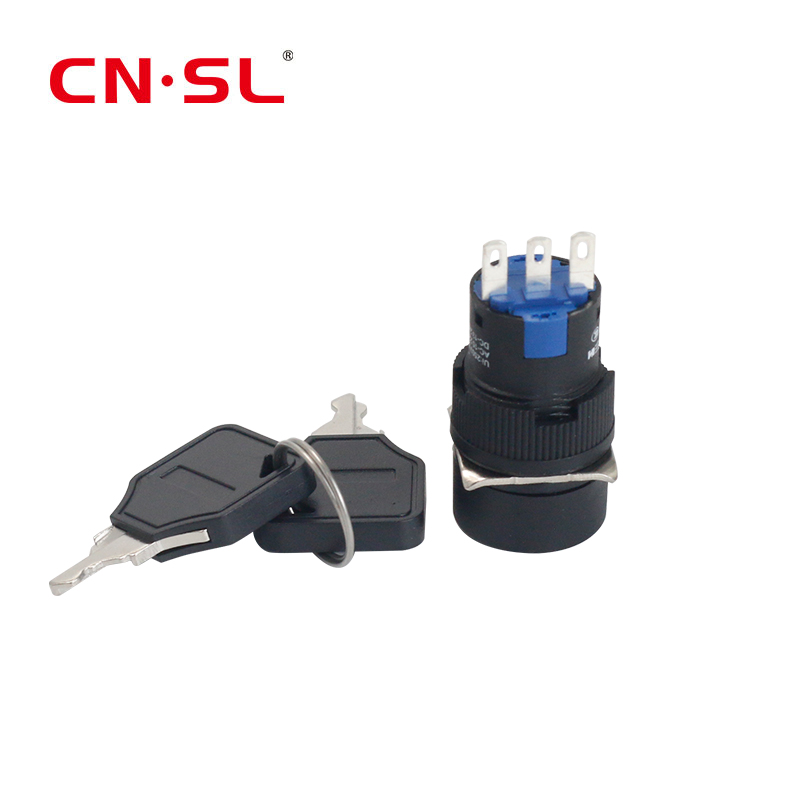

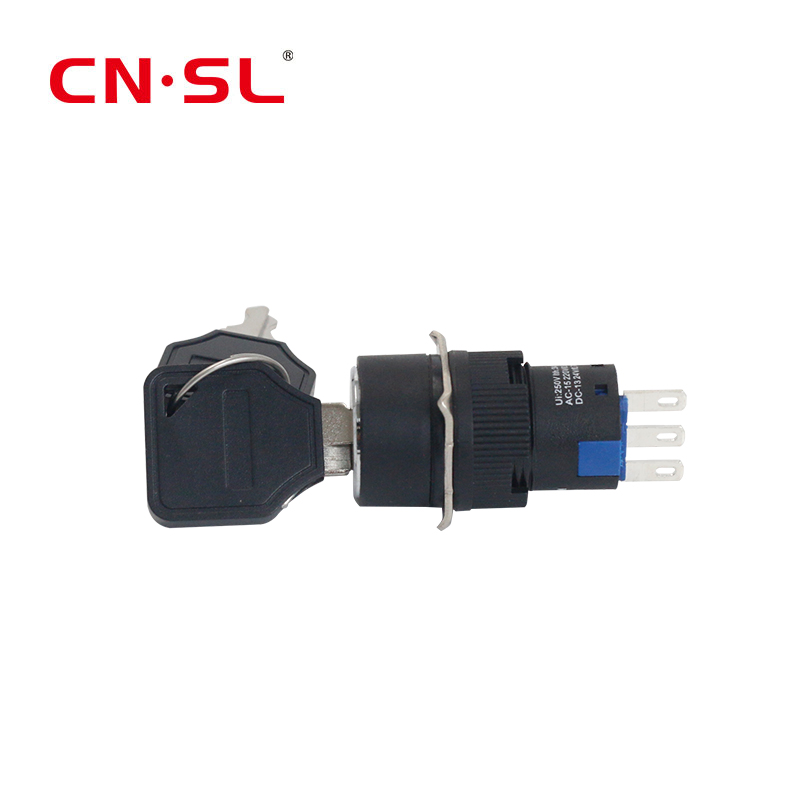

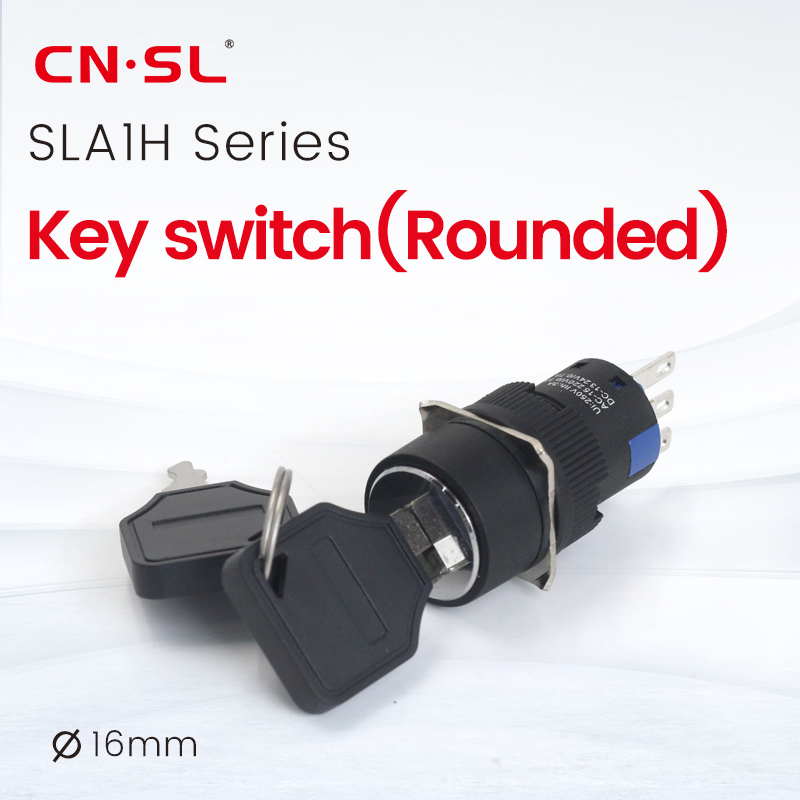

Manufacturer Casting Machinery Waterproof Manual Operation Key Switch with Patent

  • SLA1H-Y

  • CN·SL

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Key Selector Switch key switch 22mm Key switch Push Button Switches 2 position selector switch IP65 Key switch Selector Push Button Control Switch 10A Key Lock Selector Switch Membrane Key Selector Switch High-quality Membrane Key Selector Switch
Structural feature
Technical parameters
Dimensions

Structural feature


  • Manufacturing & Testing

    Compliant with GB/T 14048.5, ensuring consistent quality and reliability in production and testing.

  • Altitude Ratin

    Suitable for operation up to 2000 m, accommodating diverse geographical conditions.

  • Operating Temperature Rang

    -25°C to +50°C (ambient)

    Daily average ≤ +35°C for sustained performance.

  • Storage Temperature Range

    -30°C to +70°C, ensuring integrity during non-operational periods.

  • Humidity Toleranc

    Operational range: 5% to 95% RH

    Daily average ≤ 90% RH to prevent moisture-related issues.

Technical parameters

  • Dielectric Strength

    Withstands 2.5 kV AC (power frequency), ensuring robust insulation.

  • Rated Insulation Voltage (Ui

    250V, defining maximum continuous insulation capability.

  • Conventional Thermal Current (Ith)

    3A under normal operating conditions.

  • Contact Resistance

    ≤50 mΩ, minimizing energy loss and heat generation.

  • Switching Capacity (Ue/Ie)

    AC-15: 220V / 0.5A

    DC-13: 24V / 0.7A

  • Protection Class Standard

    IP40;Optional: IP65 (customizable for harsh environments).

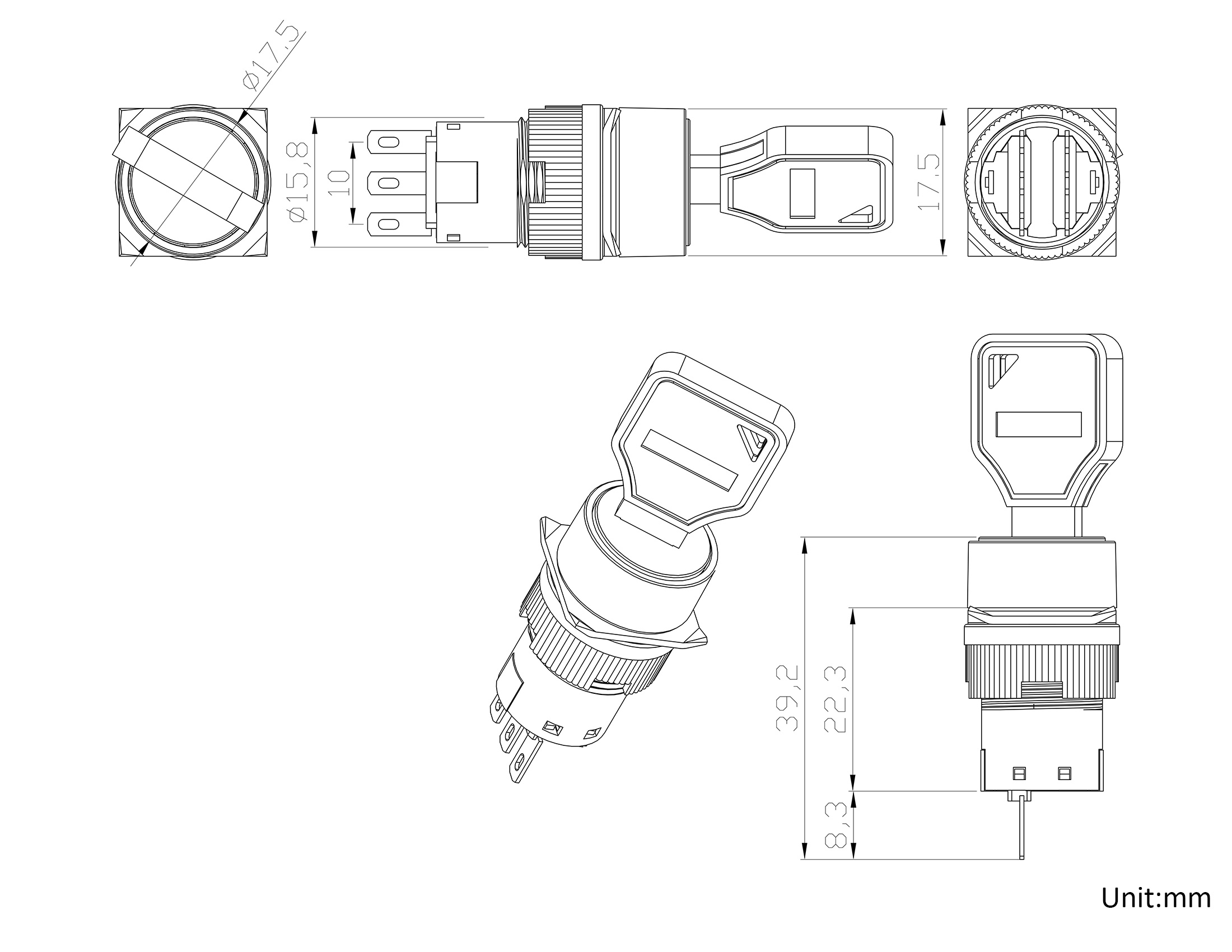

Dimensions

钥匙钮-SLA1H-Y11Y21-2位自锁_01

Related Products

SLA6H Series Best-seller Construction Machinery Collapsible Illuminated Button with Patent
SLA6H Series Best-seller Construction Machinery Collapsible Illuminated Button with Patent
2NO 3 Position Self Locking or Self Resetting Selector Knob Switch 10A/660V Rotary Switch
2NO 3 Position Self Locking or Self Resetting Selector Knob Switch 10A/660V Rotary Switch
22mm Selector Switch 2NO 3 Positions Maintained Latching Rotary 10A
22mm Selector Switch 2NO 3 Positions Maintained Latching Rotary 10A
SLA7M Self-locking And Self-resetting 22MM Projecting Push Button Switches
SLA7M Self-locking And Self-resetting 22MM Projecting Push Button Switches
Mushroom Head Emergency Stop Push Button Switch Red Or Green Sign
Mushroom Head Emergency Stop Push Button Switch Red Or Green Sign
3 Position Key Switch 22mm Electrical Push Button Switch Motorcycle Waterproof design On Off Selector
3 Position Key Switch 22mm Electrical Push Button Switch Motorcycle Waterproof design On Off Selector
22mm SLA7M Series Momentary Latching Rotary Selector Switch with 2 Position Sliver Contact
22mm SLA7M Series Momentary Latching Rotary Selector Switch with 2 Position Sliver Contact
Plastic Push Button 22mm 1no 1nc 3 Position Selector Rotary Selector Switch
Plastic Push Button 22mm 1no 1nc 3 Position Selector Rotary Selector Switch
SLDJ Series Metal Indicator Used On Elevator 12mm
SLDJ Series Metal Indicator Used On Elevator 12mm
Manufacturer Casting Machinery Plastic Start Switch with TUV
Manufacturer Casting Machinery Plastic Start Switch with TUV

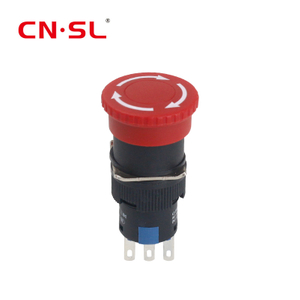

Manufacturer Medical Device Quick Disassembly Emergency Stop Button with Patent
