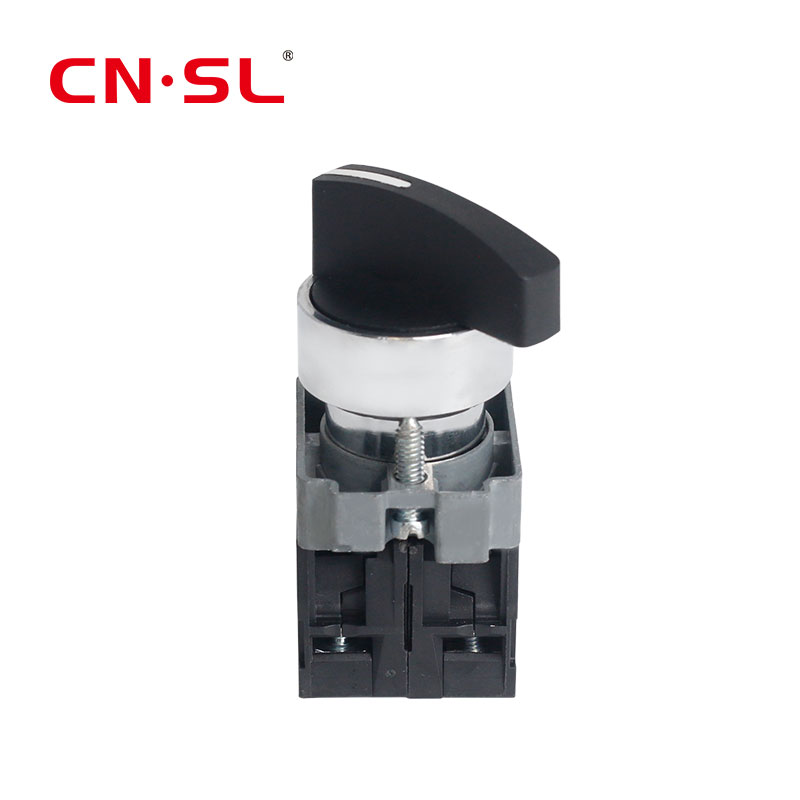

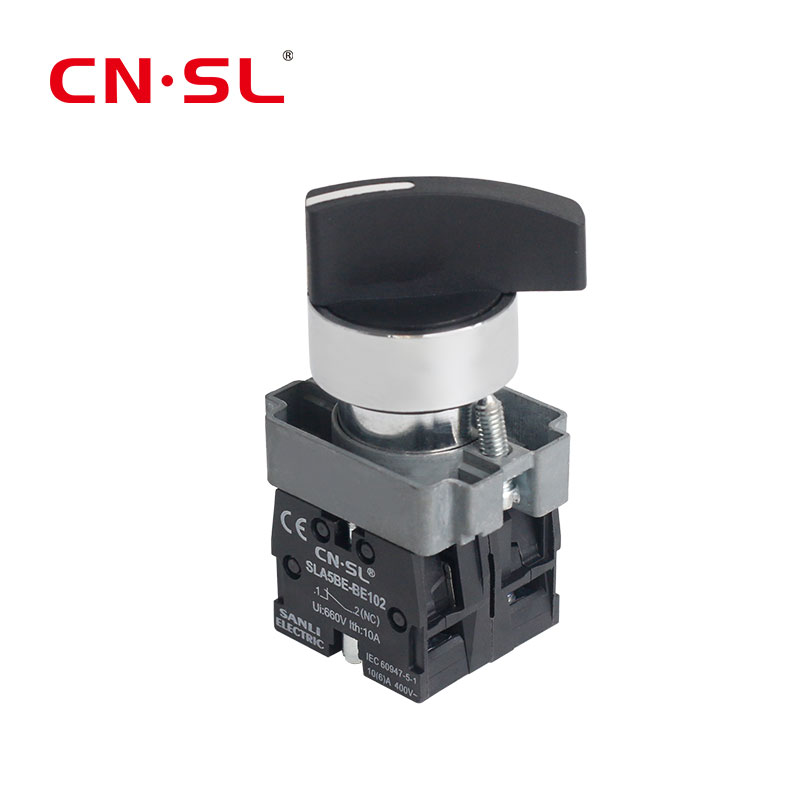

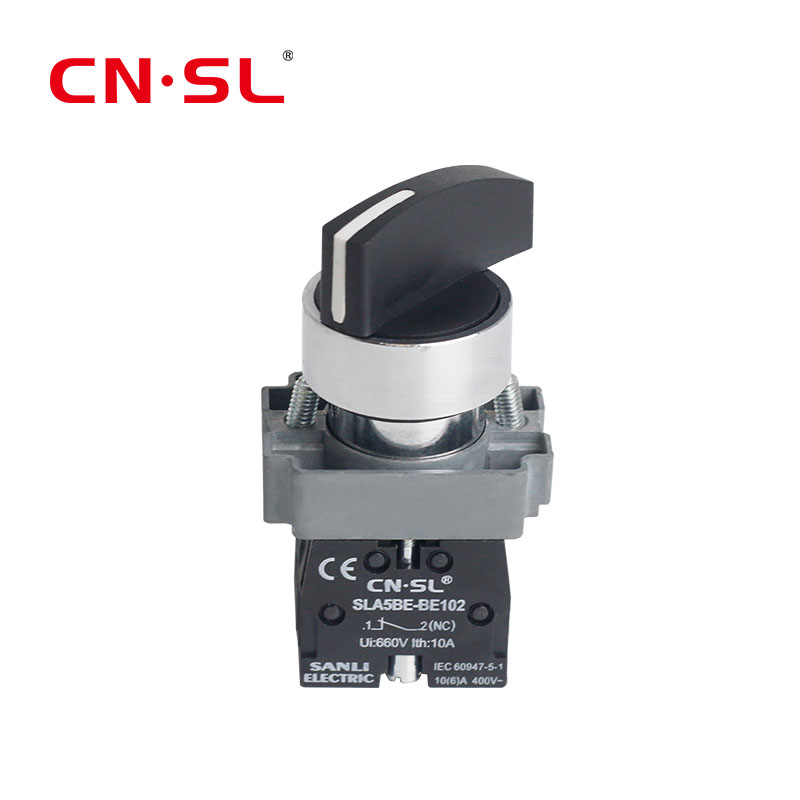

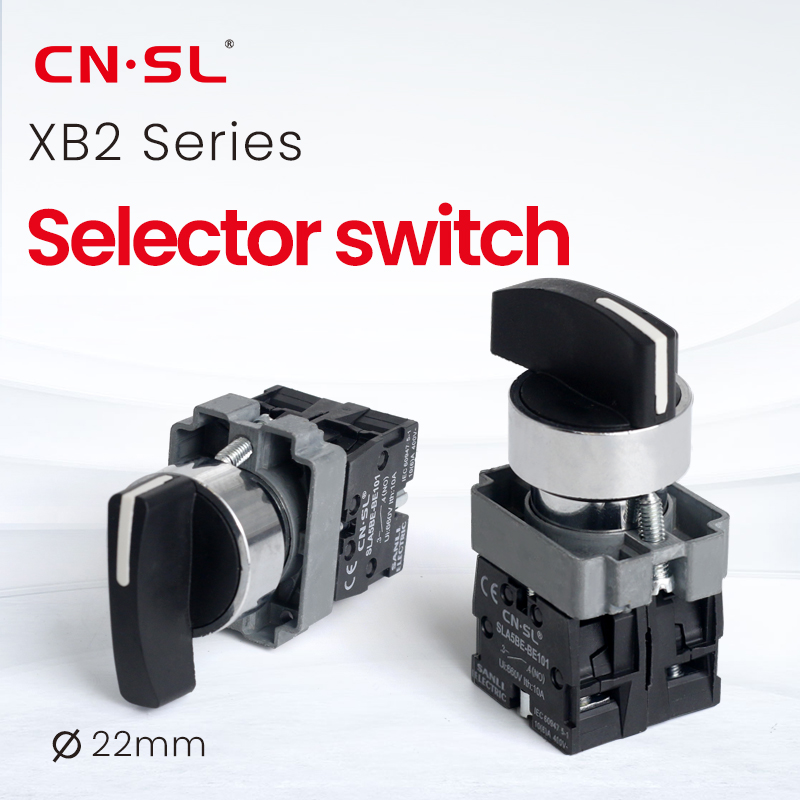

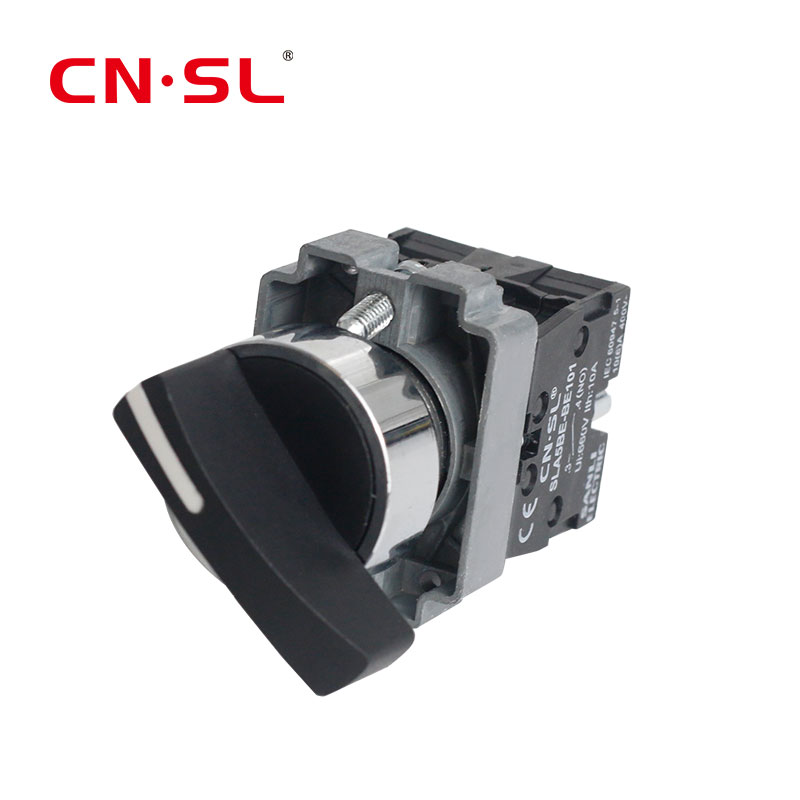

The XB2 Series Self-locking Rotary Switch is a reliable and durable electrical switch designed for various industrial applications. Manufactured by CN·SL, this switch offers high performance and long-lasting use.
It has a maximum current rating of 63A and a maximum voltage of 690V, making it suitable for heavy-duty applications. The switch features a mechanical life of 100,000 cycles and operates for 120 hours continuously.
The XB2 Series is rated IP20, ensuring protection from solid objects larger than 12mm. It comes with a single handle for easy operation. The switch has two poles for versatile connectivity and can be installed on a panel.
This switch is certified by TUV, CE, UL, and RoHS, ensuring compliance with international standards for quality and safety.
| Parameter | Value |
| Maximum Current | 63A |
| Maximum Voltage | 690V |
| Brand | Cantak |
| Model | LW26-63 |
| Mechanical Life | 100,000 cycles |
| Operating Hours | 120 hours |
| IP Rating | IP20 |
| Handle | I |
| Poles | 2 |
| Installation Method | Panel Mount |
| Certifications | TUV, CE, UL, RoHS |
Features for the XB2 Series Self-locking Rotary Switch from CN·SL:
Durability and Waterproof Design: Rated IP65, ideal for harsh environments and heavy usage.
Material: Made of plastic, ensuring smooth operation and long-lasting durability.
Voltage Compatibility: Supports up to 220V and 12V, suitable for both AC and DC systems.
Easy Installation: Minimum order of 1 unit, perfect for small-scale projects or prototype testing.
Energy-saving Features: Equipped with an LED indicator, allowing users to easily monitor the switch status.
Advantages and applications for the XB2 Series Self-locking Rotary Switch from CN·SL:
LW26 Series: Designed for circuits with 440V AC or 240V DC, ideal for circuits that are not frequently manually operated for disconnection and switching.
Application Scenarios: Perfect for use as a motor control switch, control switch device, instrument control switch, and switching device for machinery and welding machines.
Compliance with Standards: Meets GB 14048.3, GB 14048.5, IEC 60947-3, and IEC 60947-5-1 standards for safety and performance.
Current Ratings: Available in a variety of ratings: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A, 315A to suit different applications.
Derivative Products: Includes LW26GS Pad-lock and LW26S Key-lock versions, ideal for circuits requiring physical control and added security.
Protective Box: Can be equipped with an IP65 protective box for current ratings between 20A to 250A, offering additional protection.
FAQs for XB2 Series Self-locking Rotary Switch from CN·SL:
1. What is the maximum current rating for the XB2 Series Self-locking Rotary Switch?
The XB2 Series Self-locking Rotary Switch supports a maximum current of 63A, making it suitable for high-power applications.
2. What is the voltage compatibility of the XB2 Series Self-locking Rotary Switch?
The switch is compatible with circuits up to 690V AC and 12V DC, ideal for both AC and DC systems.
3. Is the XB2 Series Self-locking Rotary Switch suitable for outdoor use?
Yes, it has an IP20 rating, making it ideal for indoor applications. For harsher environments, protective covers and additional protection are available.
4. What is the mechanical lifespan of the XB2 Series Self-locking Rotary Switch?
The switch has a mechanical life of 100,000 cycles, ensuring long-lasting operation under normal use.
5. How is the XB2 Series Self-locking Rotary Switch installed?
The XB2 Series Self-locking Rotary Switch is designed for panel mount installation, providing easy setup for various industrial systems.
6. What are the certifications for the XB2 Series Self-locking Rotary Switch?
The product is certified by TUV, CE, UL, and RoHS, ensuring its quality and compliance with international standards.
