Industry Use Selector Knob Switch 2Positions Self-lock 1NO1NC ON OFF

  • SLA8T-X

  • CN·SL

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Selector Knob Switch
Structural feature
Technical parameters
Dimensions
Structural feature



  • The connector features quick rolling contacts for improved reliability.

Technical parameters

  • Rated operating current corresponding to rated operating voltage:

Type of use

Rated value

AC-15

Rated operational voltage(Ue)

380V

220V

Rated operational current(Ie)

2.5A

3.3A

DC-13

Rated operational voltage(Ue)

220V

110V

Rated operational current(Ie)

0.3A

0.6A

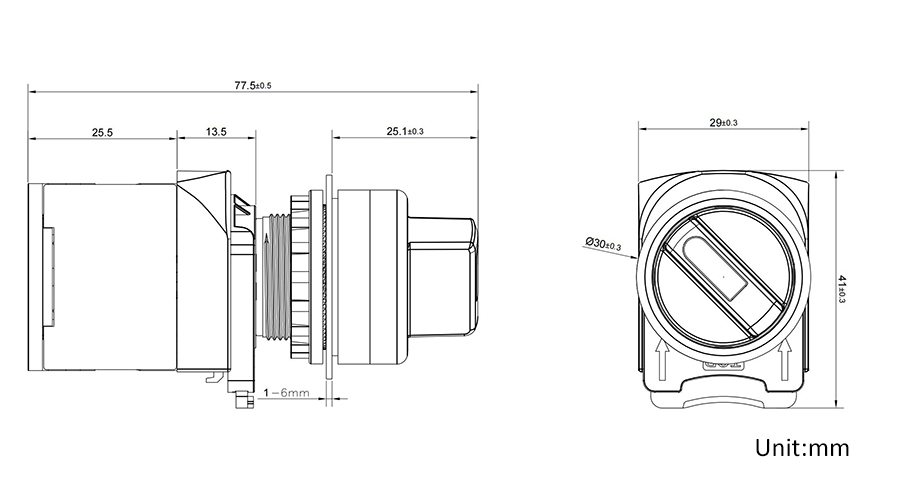

Dimensions

8T旋钮二位置锁-复位
