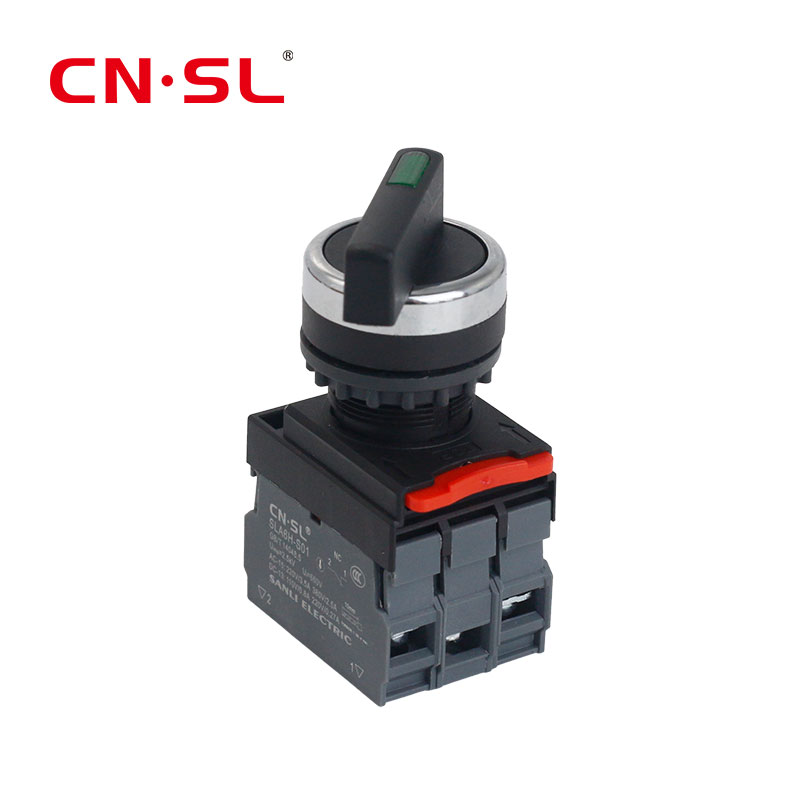

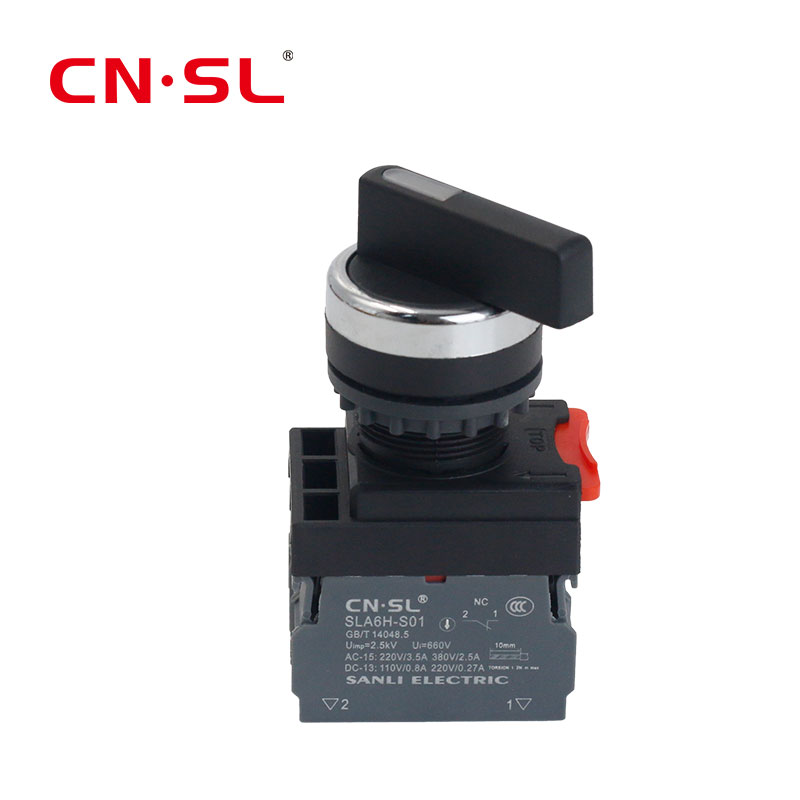

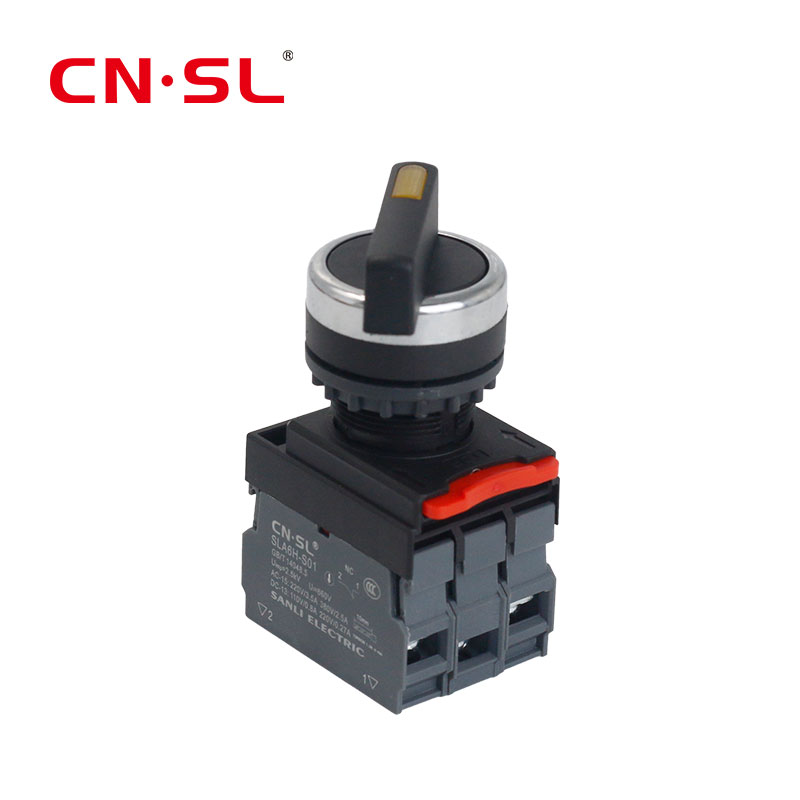

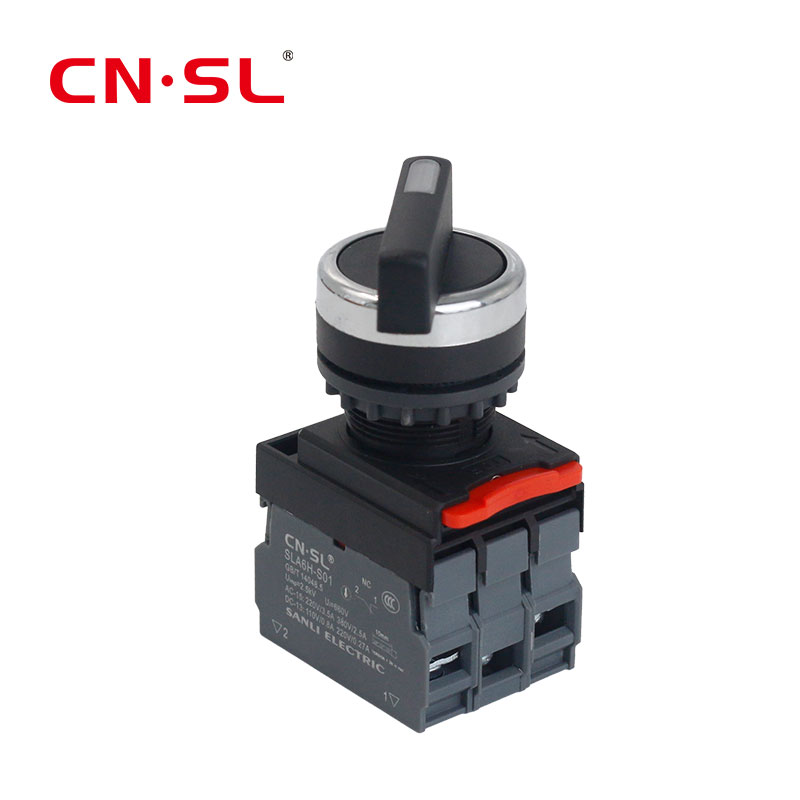

SLA6H Multicolor Control Panel Quick Disassembly Illuminated Button with Certification

Model:
SLA6H-XBD
Brand:
CN·SL

Quantity:
Availability:





Inquire Add to Basket

Push Button Switches selector switch 22mm Diameter Flush head Stay Put Selector Pushbutton illuminated selector switch Long hand switch Momentary Latching Rotary Plastic Push Button IP65 Waterproof

Structural feature

Technical parameters

Dimensions

Structural feature

The SLA6 series push button switch (hereinafter referred to as the push button switch) is applicable to the control circuits of power and other equipment. These circuits operate at an AC frequency of 50/60Hz, with a rated AC voltage up to 660V and a rated DC voltage up to 440V. The switch is used for functions such as control, signal transmission, and interlocking. Moreover, this product adheres to the GB/T 14048.5 standard.

Technical parameters

Rated working system
a) Eight-hour working day;

b) Uninterrupted working system;

c) Short-time working system;

d) The corresponding value of intermittent cycle working system (number of operating cycles per hour (operating frequency) and load factor (power-on duration) : 1200 times /h is 25%; 300 times /h is 40%).

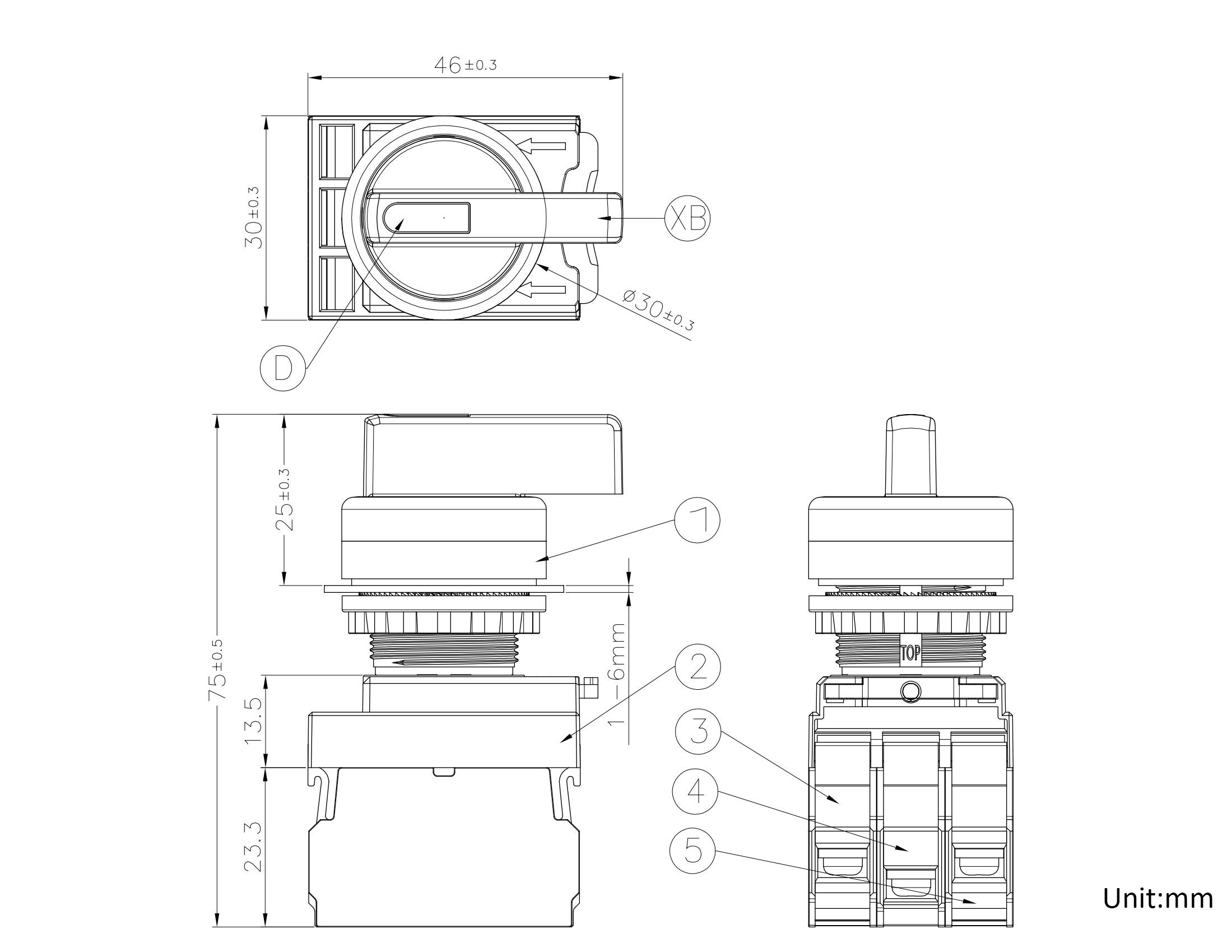

Dimensions

6H长柄带灯旋钮三位置锁-复位-半复位_00
